Japan Racing JR37

Buying Guide for Japan Racing JR37 Rims

The Japan Racing JR37 rims are among the most versatile models in the Japan Racing range, combining a modern 10-spoke design with a very wide selection of dimensions. Their clean lines and sharply defined spokes give the rim a particularly technical look, making it suitable for both sporty compact cars and modern saloons.

The JR37 is available in many sizes, widths, and bolt pattern variants, allowing it to be fitted to a wide range of vehicle platforms. In this buying guide, you will learn about the characteristics of this model, which JR37 rim sizes are available, and what to consider when choosing the right configuration.

Design and Features of the Japan Racing JR37

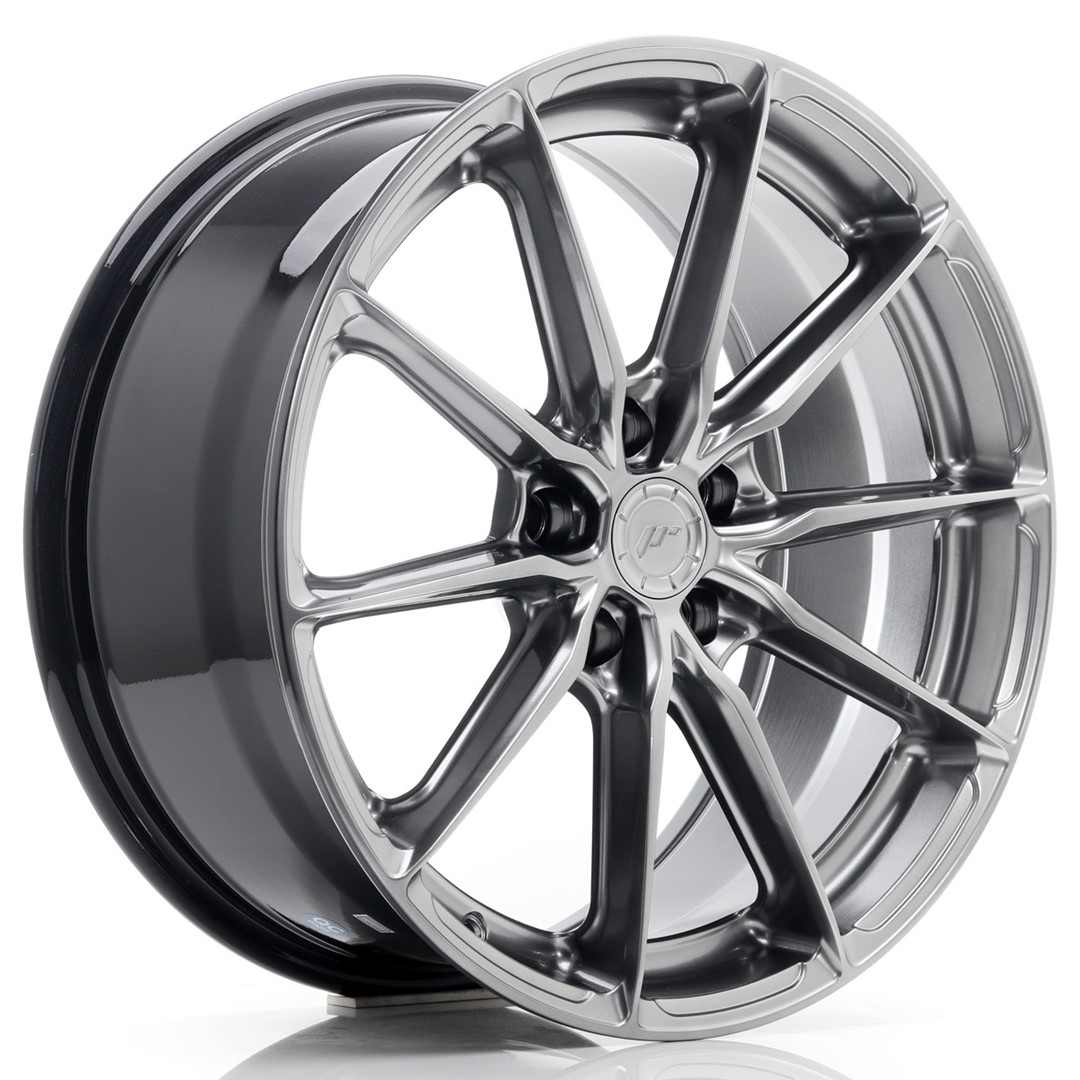

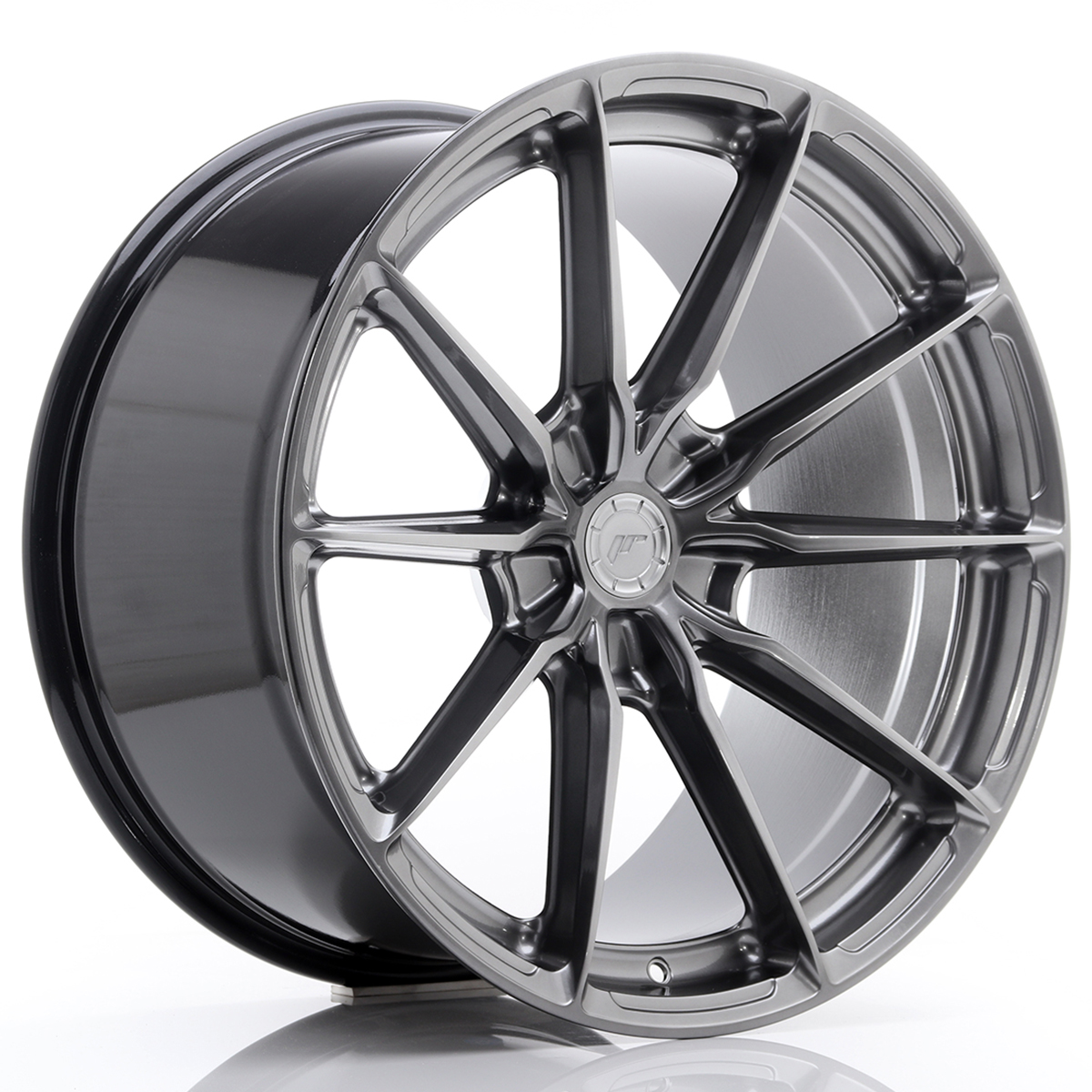

The most striking feature of the Japan Racing JR37 is its distinctive 10-spoke design, which creates a particularly technical and modern look with its clean lines and sharply crafted edges. The slim spokes extend directly to the outer edge of the rim, creating a so-called Rim-to-Edge construction, where the transition between the spokes and the rim edge appears particularly flat and clean.

This construction results in a Flat Lip or Reverse Lip design, with no visible step edge. This makes the rim appear visually larger, as the spokes extend to the very edge, emphasising the entire diameter of the rim. This creates a particularly dynamic and modern appearance on the vehicle, especially in larger dimensions.

In addition to its visual appeal, the open spoke design also ensures that the brake system remains clearly visible and allows more air to circulate for brake cooling. The model thus follows a modern design language that is very popular for both sporty road vehicles and high-quality OEM-oriented vehicle modifications.

Depending on the chosen rim width and offset, the JR37 can also have different profile shapes. While narrower variants tend to have a flatter design, wider configurations can create a significantly more pronounced Concave or Deep-Concave look, giving the vehicle a particularly sporty character.

Available Sizes of the JR37 Rim

The Japan Racing JR37 rims are available in an exceptionally wide range of sizes, covering many different vehicle classes. Sizes from 15 inches to 21 inches are available, making the model suitable for both compact vehicles and larger saloons or SUVs.

Smaller variants such as JR37 15-inch, JR37 17-inch or JR37 18-inch rims are often used on sporty everyday vehicles or lighter vehicle configurations. Larger dimensions such as JR37 19-inch, JR37 20-inch or JR37 21-inch rims, on the other hand, provide a particularly striking look and are often chosen for higher-performance vehicles or modern vehicle platforms.

The best size depends on the specific vehicle and the approved wheel and tyre dimensions.

Width of the JR37 Rims

In addition to the diameter, the rim width also plays an important role in selecting the right configuration. The Japan Racing JR37 is available in widths from 7J to 11.5J, offering plenty of scope for different vehicle setups.

Narrower variants such as 7J, 8J or 8.5J are often suitable for near-standard configurations and a balanced combination of everyday usability and sporty appearance. Wider variants such as 9.5J, 10J, 10.5J, 11J or 11.5J are often used on sportier vehicles or for individual tuning projects.

The choice of the correct rim width influences, among other things, the possible tyre width, the overall position of the wheel in the wheel arch, and the visual impact of the vehicle.

Bolt Pattern and Vehicle Compatibility

The Japan Racing JR37 rims are available with a wide selection of bolt pattern variants, allowing them to be fitted to many different vehicle platforms. Available bolt patterns include 4x100, 5x100, 5x105, 5x108, 5x110, 5x112, 5x114.3, 5x115, 5x118, 5x120, 5x120.6, 5x127 and 5x130.

This wide selection makes the JR37 suitable for numerous vehicle classes – from sporty compact cars to larger saloons or SUVs. It is always crucial that the rim's bolt pattern exactly matches the technical specifications of the respective vehicle.

An additional advantage is that certain variants of the JR37 are offered as so-called blank rims (5H). In these cases, the bolt pattern and offset can be individually adjusted. This allows the rim to be configured for vehicles where standardised bolt patterns are not always available.

In addition to the bolt pattern, the centre bore also plays an important role. The Japan Racing JR37 is available with different centre bore diameters depending on the variant, including 65.1 mm, 66.6 mm, 67.1 mm, 72.6 mm and 74.1 mm. If the rim's centre bore is larger than the vehicle's hub diameter, suitable Spigot Rings are used, which enable precise centering on the wheel hub and thus ensure vibration-free mounting.

Offset (ET) of the JR37 Rim

In addition to diameter, width, and bolt pattern, the offset (ET) also plays a crucial role in selecting the right rim. The Japan Racing JR37 is available in a very wide ET range from approximately ET0 to ET64, allowing for many different vehicle configurations.

The offset describes the distance between the wheel centre and the mounting surface of the rim on the wheel hub. A smaller ET number causes the rim to sit further outwards, making the vehicle's track appear wider. A larger ET number, on the other hand, positions the wheel further inside the wheel arch.

Choosing the correct ET is important to ensure sufficient clearance from the brakes, suspension, and bodywork. At the same time, the offset also influences the overall position of the rim in the wheel arch and thus the visual appearance of the vehicle.

The suitable ET variant depends on the specific vehicle platform, the chosen rim width, and any possible suspension or bodywork modifications.

Colours of the Japan Racing JR37 Rims

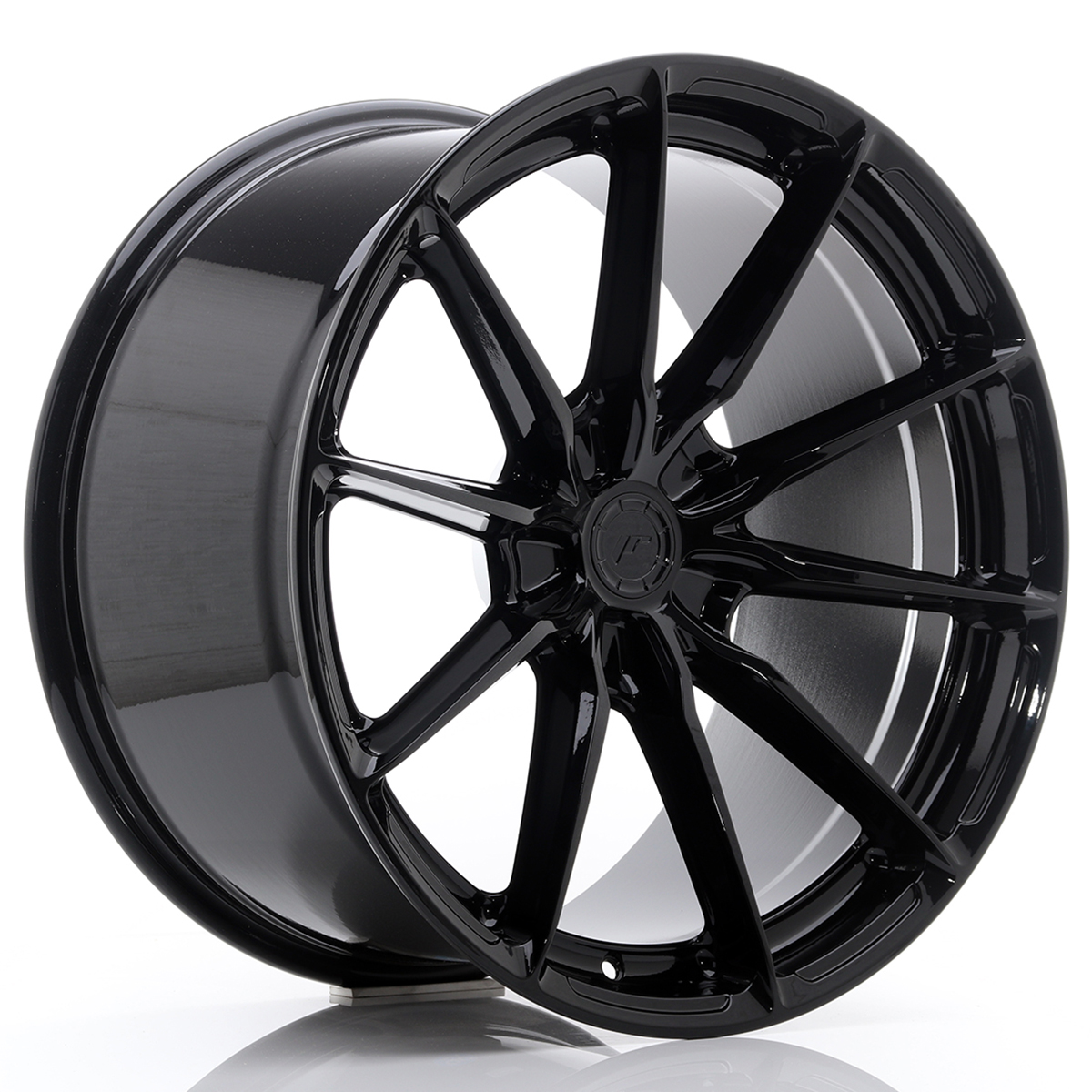

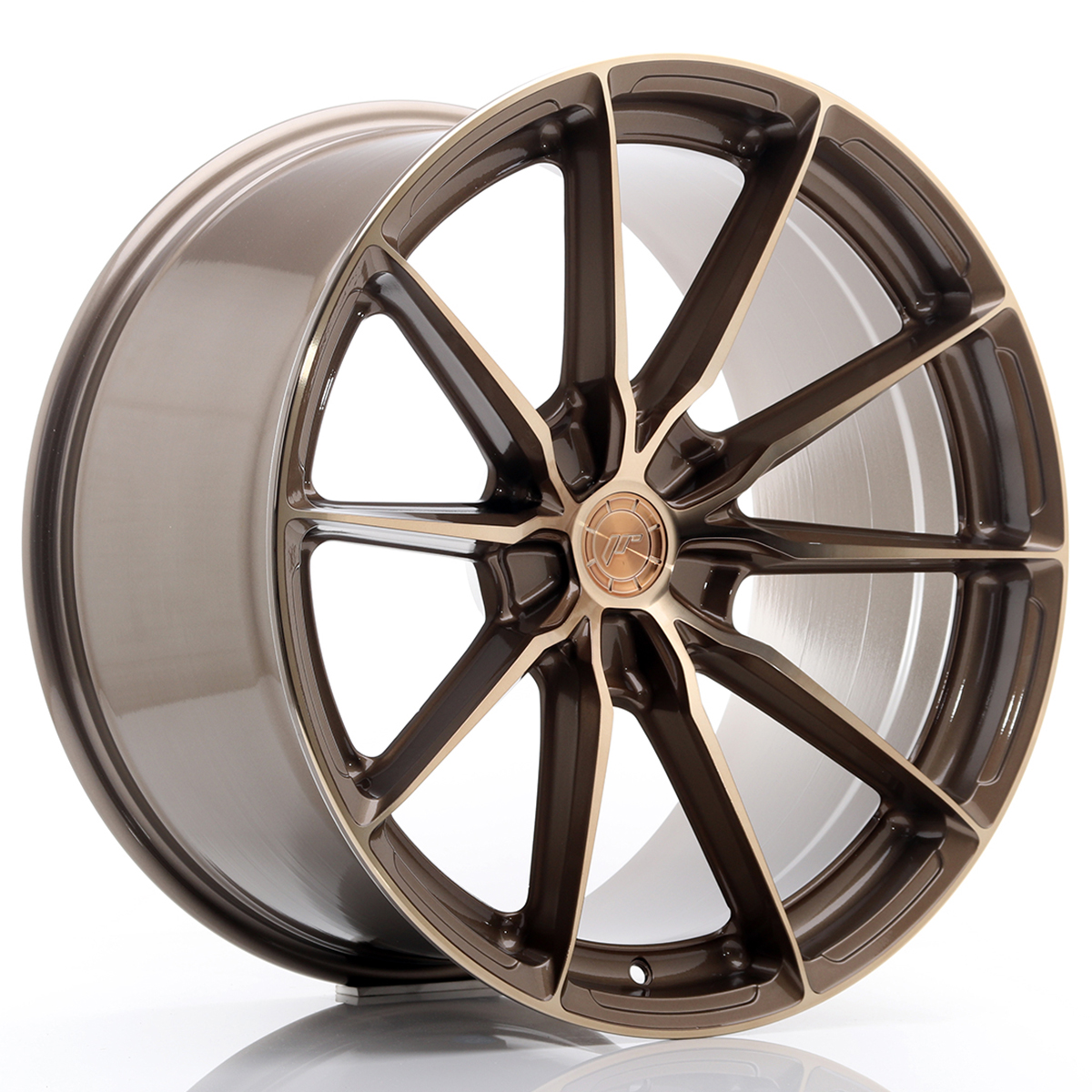

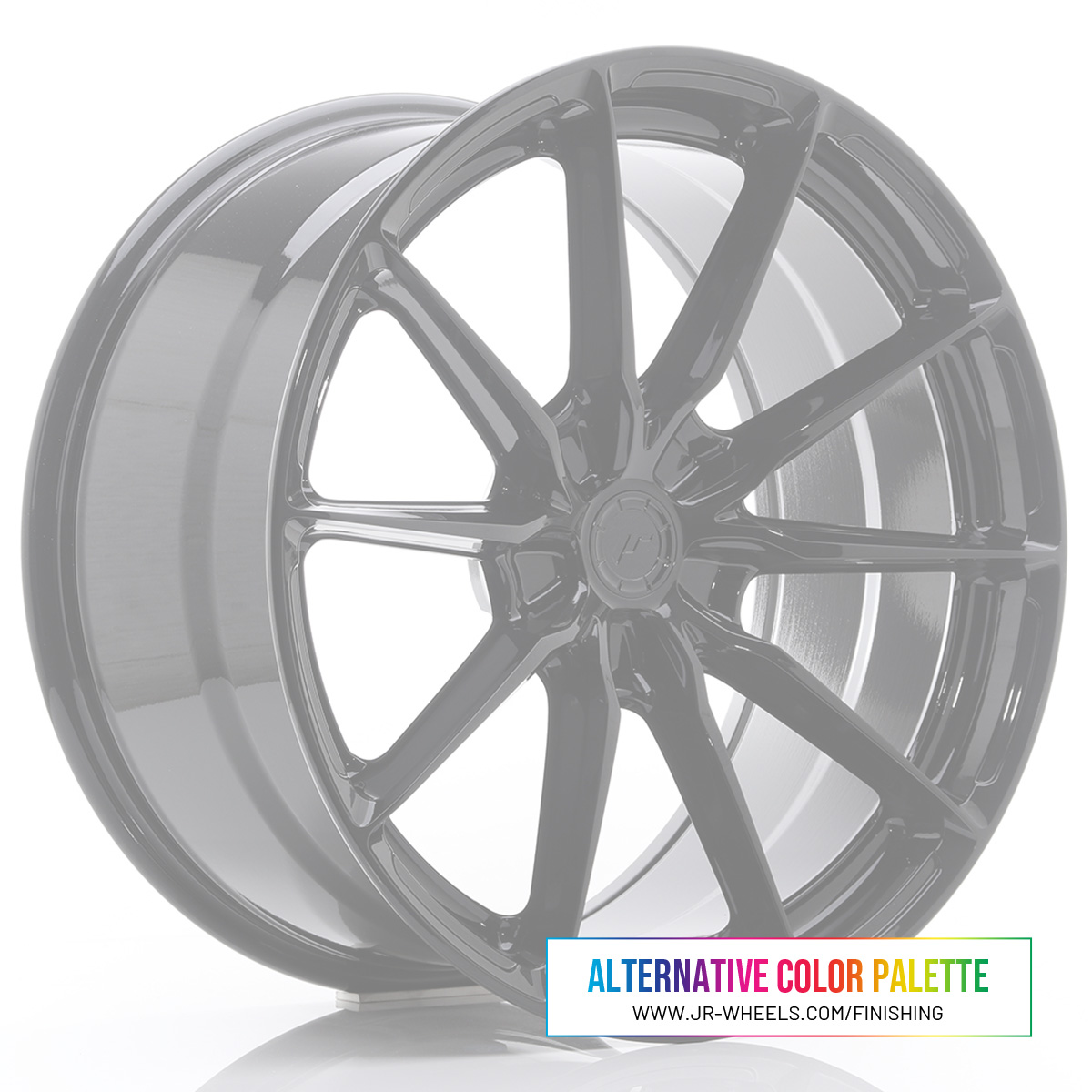

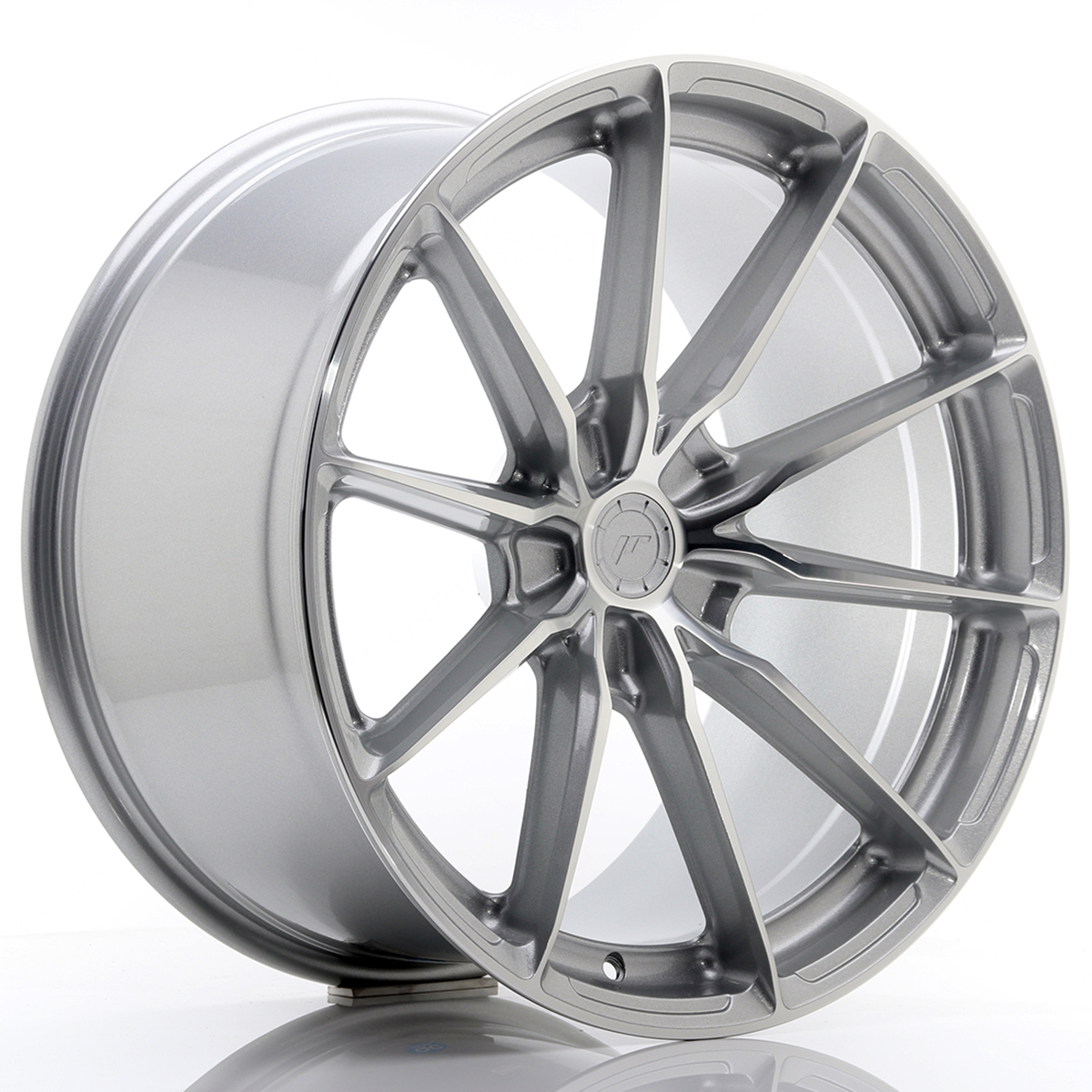

The Japan Racing JR37 rims are available in several colour variants, allowing for different visual vehicle configurations. Available colours include Black, Bronze, Multicolor, and Silver/Grey.

Darker variants such as Black or Bronze are often used on sporty vehicles, as they create a strong contrast with the vehicle's bodywork and particularly highlight the technical character of the 10-spoke design. The clean lines of the spokes make the rim appear particularly dynamic in these colours.

Lighter variants such as Silver or Silver/Grey, on the other hand, emphasise the fine contours of the spokes more strongly. The sharp edges of the design make the JR37 appear particularly detailed and technically precise in these shades.

Multicolour variants are also occasionally chosen when a more eye-catching vehicle appearance is desired. Since the spokes of the JR37 extend to the outer rim edge, the chosen colour variant can have a significant impact on the overall appearance of the rim on the vehicle.

JR37 Rims with CH Certificate

The Japan Racing JR37 rims offered here are supplied with a CH Certificate and a suitable mounting kit. This allows the rims to be fitted to many vehicle models, as corresponding documentation is available for numerous applications, which can be considered during the MFK (roadworthiness) inspection.

The mounting kit typically includes the necessary fastening elements and suitable Spigot Rings, so that the rims can be professionally mounted on the wheel hub.

Since the JR37 rim is available in many different dimensions, widths, bolt patterns, and offsets, you should always check which variant is technically compatible with your specific vehicle before ordering. The 3D Rim Configurator can help you find suitable JR37 rims for your vehicle model and compare different configurations.

Price and Delivery Time of the JR37 Rims

The price of the Japan Racing JR37 rims can vary depending on the dimension, width, bolt pattern, and finish. Smaller variants such as JR37 15-inch or JR37 17-inch rims are generally cheaper than larger dimensions, as they require less material and are often used on more compact vehicles.

Larger variants such as JR37 19-inch, JR37 20-inch or JR37 21-inch rims are usually more expensive, as they are primarily used on higher-performance vehicles or larger vehicle classes. Particularly wide variants can also influence the price.

Most variants of the JR37 rim have a typical delivery time of approximately 5 to 14 days, depending on the specific dimension and finish.

Individual Check Before Ordering

Even though many Japan Racing JR37 rims are available for different vehicles, an additional technical check before ordering may be advisable.

Especially with wider rims, special offsets, or modified vehicles, you should check whether there is sufficient space in the wheel arch and whether all technical requirements are met.

If you have any uncertainties regarding width, offset, bolt pattern, or MFK-relevant aspects, an individual check can be carried out in direct coordination with our team.

You can contact us quickly via WhatsApp and send us your vehicle model and the desired JR37 rim configuration. This will allow you to clarify technical questions before ordering and select the appropriate combination for your vehicle.
