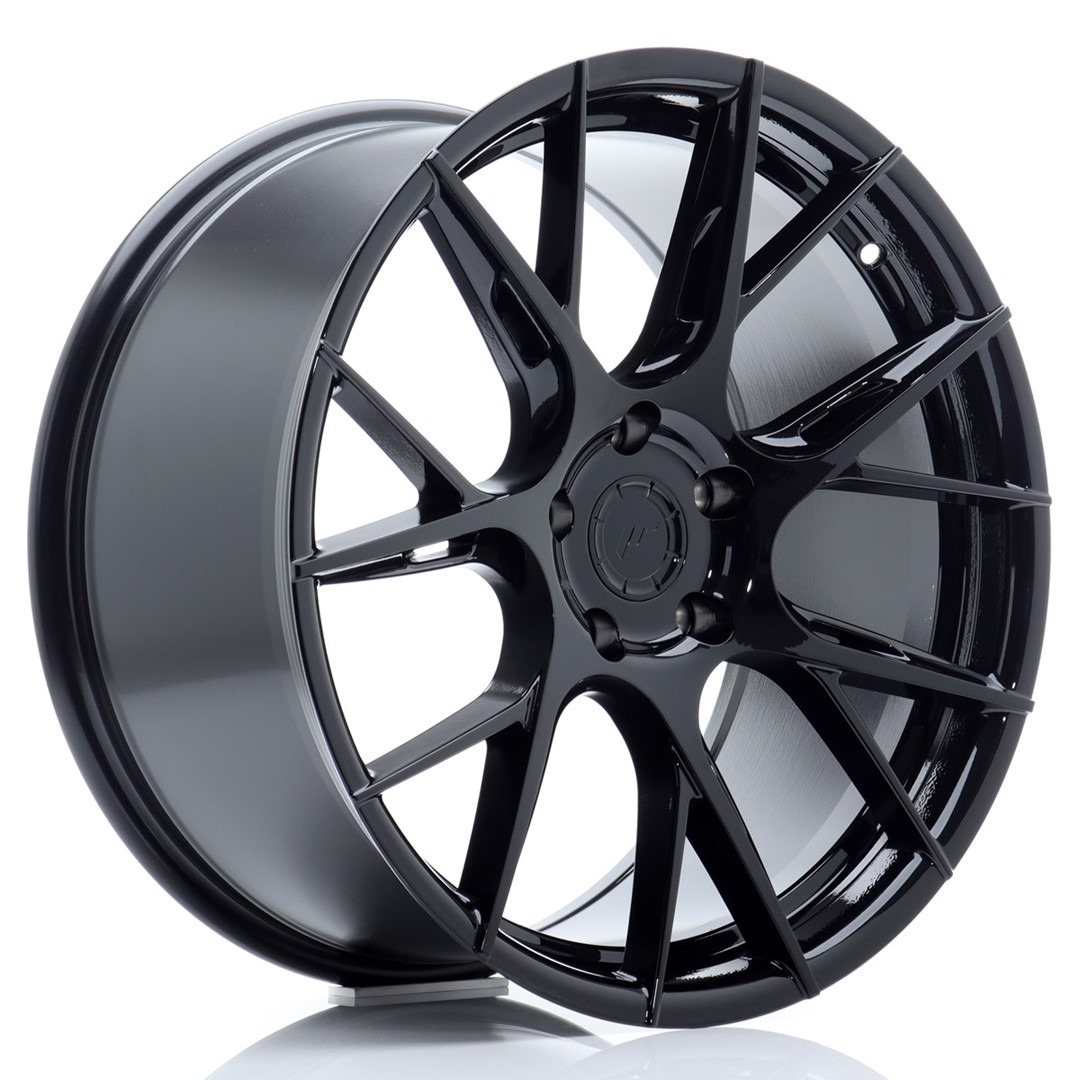

Japan Racing JR51

Buying Guide for Japan Racing JR51 Rims

The Japan Racing JR51 rims are among the more modern models in the range, combining a dynamic design with advanced manufacturing technology. Through the combination of flow-forming construction and directional spoke design, this model is primarily aimed at drivers who want to combine a sporty look with improved handling.

The JR51 rim is available in various diameters and widths and is suitable for both performance-oriented road vehicles and sporty daily setups. In this buying guide, you will learn about the characteristics of this model, the available sizes, and what to consider when choosing the right rim configuration.

Design and Features of the Japan Racing JR51 Rims

The design of the Japan Racing JR51 is based on a directional 10-spoke concept, where the spokes are slightly twisted in one direction. This creates a visual dynamism that makes the vehicle appear more in motion even when stationary and gives the overall setup a significantly sportier appearance.

The spokes extend to the outer edge of the rim, creating a rim-to-edge construction, which makes the rim appear visually larger. This appearance is complemented by a finely crafted, machined lip that visually emphasises the outer edge and adds extra depth to the design.

A central component of this model is the use of flow-forming technology. In this process, the rim ring is compacted under pressure, which can achieve higher strength while simultaneously reducing weight. Compared to classic cast rims, the JR51 therefore offers noticeably lower unsprung mass, which can positively impact handling, acceleration, and braking performance.

Thanks to the combination of an open spoke design and structural stability, the rim also offers very good conditions for use with high-performance brake systems. At the same time, the construction supports air circulation in the brake area.

Depending on the combination of rim width and offset, the JR51 can have different profile shapes. While narrower variants appear rather flat, wider versions develop a distinctly pronounced concave shape, making the rim appear sportier and more striking overall.

Available Sizes of the Japan Racing JR51 Rims

The Japan Racing JR51 rims are available in several diameters, covering a wide range of modern vehicle configurations. Sizes available are 18 inches, 19 inches, and 20 inches, making the model suitable for both sporty everyday vehicles and higher-performance vehicle platforms.

Dimensions such as 18 inches are often used in balanced setups where driving comfort, weight, and everyday usability are the priority. Larger variants such as 19 inches or 20 inches, on the other hand, provide a significantly stronger visual presence and are often chosen for vehicles where design plays an important role alongside performance.

The best size always depends on the specific vehicle and the approved wheel and tyre dimensions.

Width of the JR51 Rims

In addition to diameter, rim width also plays a crucial role in selecting the right configuration. The Japan Racing JR51 is available in widths from 8J to 10.5J, offering sufficient scope for various sporty vehicle setups.

Narrower variants such as 8J or 8.5J are often suitable for near-standard configurations and enable a balanced combination of driving comfort, stability, and precise handling. Wider rims such as 9J, 9.5J, 10J, or 10.5J, on the other hand, are often used in sportier setups where a more striking look and a wider track are desired.

As the width increases, so does the visual impact of the rim. Especially with wider variants, the concave form becomes more pronounced, causing the spokes to drop visibly towards the centre and making the rim appear more dynamic and lower overall.

PCD and Vehicle Compatibility

The Japan Racing JR51 rims are available with a variety of different PCD (Pitch Circle Diameter) variants and can therefore be used on many different vehicle platforms. Available PCDs include 5x100, 5x105, 5x108, 5x110, 5x112, 5x114.3, 5x115, 5x118, and 5x120.

This selection makes the JR51 rim suitable for both modern compact vehicles and higher-performance saloons or sporty vehicle platforms. It is always crucial that the rim's PCD exactly matches the technical specifications of the respective vehicle.

A particular advantage of this model is that certain variants are offered as so-called blank rims. In these cases, the PCD and offset can be individually adapted, allowing the JR51 to be configured for vehicles for which standardised PCDs are not always available.

In addition to the PCD, the centre bore also plays an important role. The Japan Racing JR51 is available with different centre bore diameters depending on the variant, including 66.6 mm, 72.6 mm, and 74.1 mm. In many cases, a larger centre bore is used, which is precisely adapted to the vehicle's hub diameter using spigot rings.

Offset (ET)

In addition to diameter, width, and PCD, the offset (ET) also plays an important role in selecting the right rim. The Japan Racing JR51 is available in an ET range of approximately ET15 to ET51, allowing for a variety of different vehicle configurations.

The offset describes the distance between the wheel centre and the mounting surface of the rim on the wheel hub. A smaller ET value causes the rim to sit further outwards, making the vehicle's track appear wider. A larger ET value, on the other hand, positions the wheel further inside the wheel arch.

Choosing the correct ET is crucial to ensure sufficient clearance from the brake system, suspension, and bodywork. At the same time, the offset also influences the position of the wheel in the wheel arch and thus the visual appearance of the vehicle.

Colours of the JR51 Rims

The Japan Racing JR51 rims are available in selected colour variants, allowing for different visual vehicle configurations. The range includes Black, Bronze, and Silver/Grey, enabling both subtle and more striking setups to be realised.

The Black variant is often used on modern vehicles as it offers a clean and timeless look that complements sporty lines well. Bronze, on the other hand, is often chosen to create targeted contrasts and give the vehicle a more individual and eye-catching touch.

Silver/Grey particularly highlights the structure of the directional spoke design and makes the shape of the rim more apparent. Especially with this model, the combination of the spoke direction and light reflection creates additional visual dynamism.

The best colour choice primarily depends on the vehicle's design and the desired overall impression.

JR51 Rims with CH Certificate

The Japan Racing JR51 rims offered here are supplied with a CH Certificate and a fitting kit. This allows the rims to be fitted to many vehicle models, as corresponding documentation is available for numerous applications, which can be considered during the MFK (Motor Vehicle Inspection) test.

The fitting kit typically includes the necessary fasteners and spigot rings, so that the rims can be professionally mounted on the wheel hub.

As each rim variant can have different dimensions, widths, PCDs, and offsets, it should be checked before ordering which JR51 configuration is suitable for the respective vehicle. The 3D rim configurator can help find suitable variants for your own vehicle.

Price and Delivery Time of the JR51 Rims

The price of the Japan Racing JR51 rims can vary depending on the size, width, PCD, and finish. Larger variants such as 19 inches or 20 inches are generally more expensive than smaller versions, as they require more material and are often used on higher-performance vehicles.

Different rim widths or specific configurations can also influence the price. Therefore, it is worthwhile to compare the different JR51 variants and choose the right combination of size and features.

Most variants of the JR51 rim have a delivery time of approximately 5 to 14 days, depending on the specific size and version.

Individual Check Before Ordering

Regardless of whether your vehicle is in standard condition or has modifications, an additional compatibility check before ordering may be advisable.

If there are any uncertainties regarding ET, width, PCD, or MFK-related aspects, an individual check can be carried out in direct consultation with our team.

Via WhatsApp, you can contact us quickly and send us your vehicle model and the desired JR51 rim configuration. This allows technical and legal questions to be clarified before ordering, making the purchasing decision more transparent and secure.
